Touchscreens - complete systems

Touchscreen solution for your application area

Touchscreens are currently the leading operating control systems. They convince by their simple handling, an inter­active screen and a space sav­ing format. When selecting a suitable touch display solution, priorities must be set ac­cord­ing to the specific realities of the field of appli­cation. In the search for an ideal solution to match your needs we are happy to advice you personally.

Functionality of capacitive and resistive touchscreens

Capacitive touchscreens

Capacitive touchscreens

The surface of a capacitive touchscreen consists of a specially coated glass, which means it is operated with­out exerting pressure on the touch display. The electric field created over the edges of the touch surface is equipped with its own charge, which is changed when the surface is touched. This facilitates evaluation of where the touch occurs.

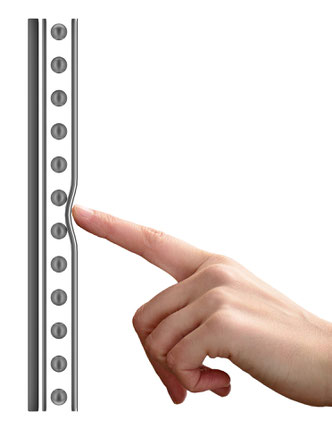

Resistive touchscreens

Resistive touchscreens

The external surface of resistive touchscreens consists of a coated con­duc­tive foil, behind which is located a con­duc­tive glass or plastic disc. The two layers are separated by distance points. Pressure on the touchscreen ensures the con­duc­tive layers make contact at this location. An electric impulse is created, which communicates co­ordi­nates of the touch position.

Customized touchscreen solutions


The touchscreens can be individually printed with both ceramic and organic inks.


Touch panel configuration

Touch panels come in all sorts of configurations. Di­ag­onal lengths of 7.62 cm (3 inches) to 54.61 cm (21.5 inches) are currently the common sizes.


Combination with other input systems

It goes without saying that combination of touch systems with membrane keyboards and short-stroke keyboards is possible.


Touch screen calibration

Before using touchscreens for the first time, it is nec­es­sary to perform calibration, which we shall be happy to do for you.
